PINS, WIRES & STAPLES Products
With expertise as a developer, manufacturer and supplier, ZENITH has an exciting product portfolio with the enviable reputation of being able to manufac-ture and provide the orthopedic surgeon with all implantable devices for specific patients needs.
Straight Staple
| A | B | Titanium |
| 25mm | 20mm | 05.1.TI01 |
| 25mm | 26mm | 05.1.TI02 |
| 25mm | 36mm | 05.1.TI03 |
Staple with Offset
| A | B | C | Titanium |
| 24mm | 36mm | 5mm | 05.2.TI01 |
| 24mm | 40mm | 10mm | 05.2.TI02 |
| 24mm | 44mm | 14mm | 05.2.TI03 |
Ligament Staples
| A | X | Y | Z | Titanium |
| 6mm | 11mm | 25mm | 3.7mm | 05.4.TI01 |
| 8mm | 13mm | 25mm | 3.7mm | 05.4.TI02 |
| 11mm | 16mm | 25mm | 3.7mm | 05.4.TI03 |
| 16mm | 21mm | 25mm | 3.7mm | 05.4.TI04 |

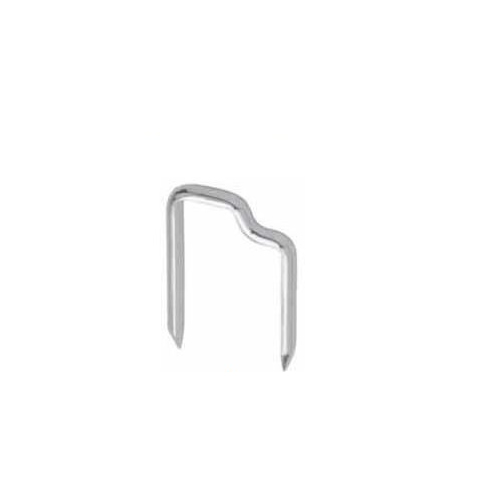

Staples - Coventry
| Description | Codes |
| 5mm Step | 05.5.SS01 |
| 10mm Step | 05.5.SS02 |
| 15mm Step | 05.5.SS03 |

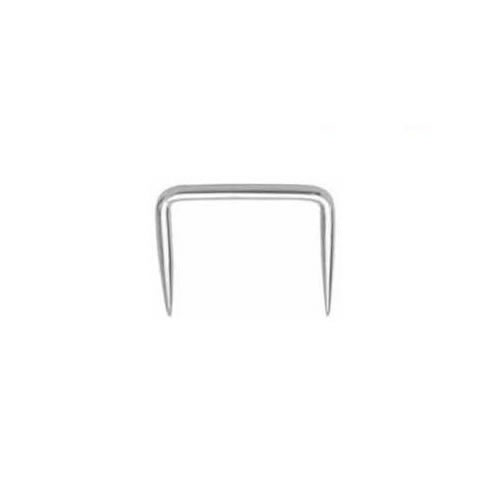

Staples U - Type
| Dia (mm) | 15 mm | 20 mm | 25 mm |
| 1.5 | 05.6.SS01 | 05.6.SS05 | 05.6.SS09 |
| 2.0 | 05.6.SS02 | 05.6.SS06 | 05.6.SS10 |
| 2.5 | 05.6.SS03 | 05.6.SS07 | 05.6.SS11 |
| 3.0 | 05.6.SS04 | 05.6.SS08 | 05.6.SS12 |

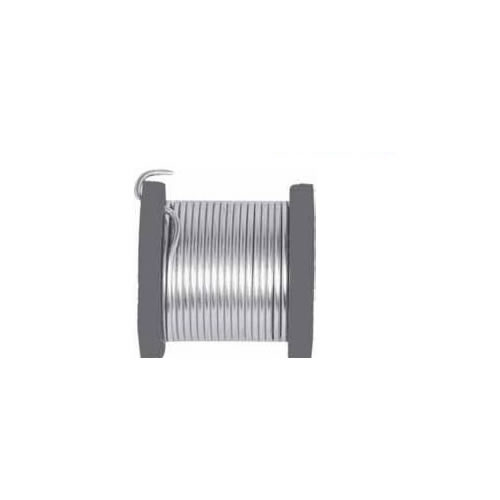

Suture Wire - Stainless Steel
| Codes | Size (mm) |
| 05.13.SS01 | 16 SWG (1.60mm) |
| 05.13.SS02 | 17 SWG (1.50mm) |
| 05.13.SS03 | 18 SWG (1.25mm) |
| 05.13.SS04 | 19 SWG (1.00mm) |
| 05.13.SS05 | 20 SWG (0.90mm) |
| 05.13.SS06 | 21 SWG (0.80mm) |
| 05.13.SS07 | 22 SWG (0.70mm) |
| 05.13.SS08 | 23 SWG (0.60mm) |
| 05.13.SS09 | 24 SWG (0.55mm) |
| 05.13.SS10 | 26 SWG (0.45mm) |
| 05.13.SS11 | 28 SWG (0.35mm) |
| 05.13.SS12 | 30 SWG (0.30mm) |

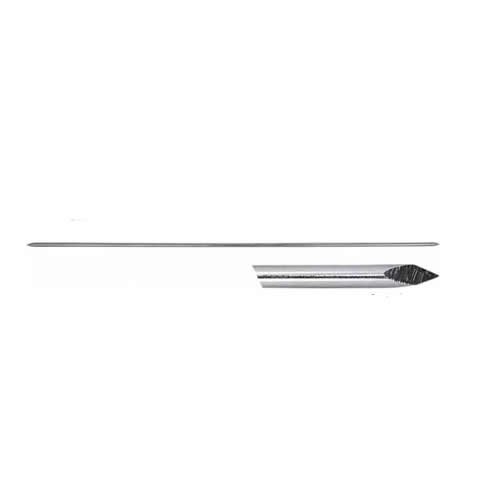

Kirschner Wire with Trocar Tip both End
| Diameter (mm) | 70 mm | 100 mm | 150 mm | 225 mm | 300 mm |
| 0.8 | 05.14.SS01 | 05.14.SS15 | 05.14.SS29 | 05.14.SS43 | 05.14.SS57 |
| 0.9 | 05.14.SS02 | 05.14.SS16 | 05.14.SS30 | 05.14.SS44 | 05.14.SS58 |
| 1.0 | 05.14.SS03 | 05.14.SS17 | 05.14.SS31 | 05.14.SS45 | 05.14.SS59 |
| 1.1 | 05.14.SS04 | 05.14.SS18 | 05.14.SS32 | 05.14.SS46 | 05.14.SS60 |
| 1.2 | 05.14.SS05 | 05.14.SS19 | 05.14.SS33 | 05.14.SS47 | 05.14.SS61 |
| 1.4 | 05.14.SS06 | 05.14.SS20 | 05.14.SS34 | 05.14.SS48 | 05.14.SS62 |
| 1.5 | 05.14.SS07 | 05.14.SS21 | 05.14.SS35 | 05.14.SS49 | 05.14.SS63 |
| 1.6 | 05.14.SS08 | 05.14.SS22 | 05.14.SS36 | 05.14.SS50 | 05.14.SS64 |
| 1.8 | 05.14.SS09 | 05.14.SS23 | 05.14.SS37 | 05.14.SS51 | 05.14.SS65 |
| 2.0 | 05.14.SS10 | 05.14.SS24 | 05.14.SS38 | 05.14.SS52 | 05.14.SS66 |
| 2.2 | 05.14.SS11 | 05.14.SS25 | 05.14.SS39 | 05.14.SS53 | 05.14.SS67 |
| 2.3 | 05.14.SS12 | 05.14.SS26 | 05.14.SS40 | 05.14.SS54 | 05.14.SS68 |
| 2.5 | 05.14.SS13 | 05.14.SS27 | 05.14.SS41 | 05.14.SS55 | 05.14.SS69 |
| 3.0 | 05.14.SS14 | 05.14.SS28 | 05.14.SS42 | 05.14.SS56 | 05.14.SS70 |

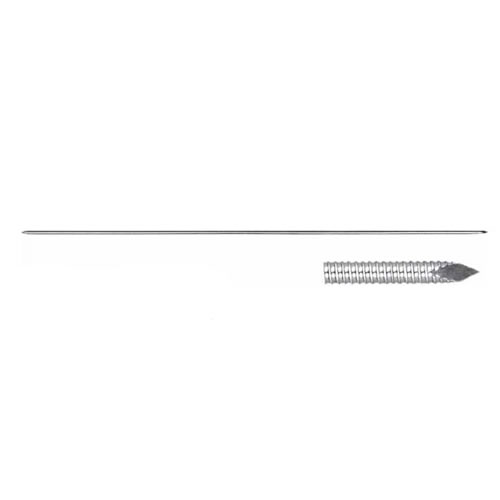

Kirschner Wire Fully Threaded
| Codes | Dia (mm) | Length (mm |
| 05.15.SS01 | 1.5 | 225 |
| 05.15.SS02 | 2.0 | 225 |
| 05.15.SS03 | 2.5 | 225 |
| 05.15.SS04 | 1.5 | 150 |
| 05.15.SS05 | 2.0 | 150 |
| 05.15.SS06 | 2.5 | 150 |

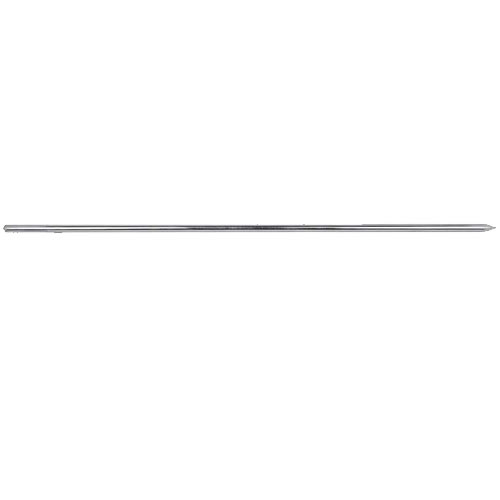

Steinman Pins
| Diameters | |||||
| Length (mm) | 3 mm | 3.5 mm | 4 mm | 4.5 mm | 5 mm |
| 150 | 05.16.SS01 | 05.16.SS05 | 05.16.SS09 | 05.16.SS13 | 05.16.SS17 |
| 175 | 05.16.SS02 | 05.16.SS06 | 05.16.SS10 | 05.16.SS14 | 05.16.SS18 |
| 200 | 05.16.SS03 | 05.16.SS07 | 05.16.SS11 | 05.16.SS15 | 05.16.SS19 |
| 225 | 05.16.SS04 | 05.16.SS08 | 05.16.SS12 | 05.16.SS16 | 05.16.SS20 |

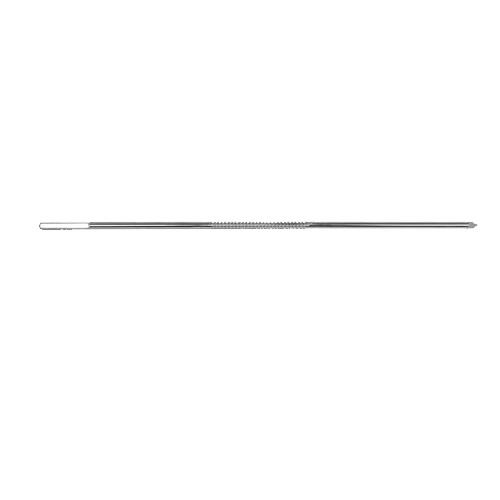

Centrally Threaded Steinman Pins
| Codes | Dia (mm) | Length (mm) |
| 05.17.SS01 | 4.0 | 225 |
| 05.17.SS02 | 4.5 | 225 |
| 05.17.SS03 | 5.0 | 225 |
| 05.17.SS04 | 6.0 | 225 |

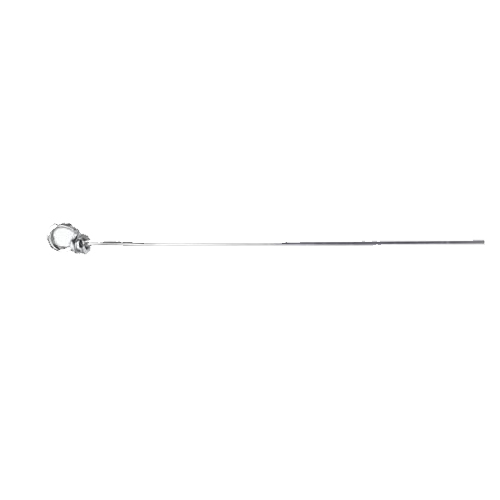

Circlage Wire With Loop
| Size (mm) | Length 280mm | Length 600mm |
| 17 SWG (1.50mm) | 05.18.SS01 | 05.18.SS06 |
| 18 SWG (1.25mm) | 05.18.SS02 | 05.18.SS07 |
| 19 SWG (1.00mm) | 05.18.SS03 | 05.18.SS08 |
| 20 SWG (0.90mm) | 05.18.SS04 | 05.18.SS09 |
| 21 SWG (0.80mm) | 05.18.SS05 | 05.18.SS10 |

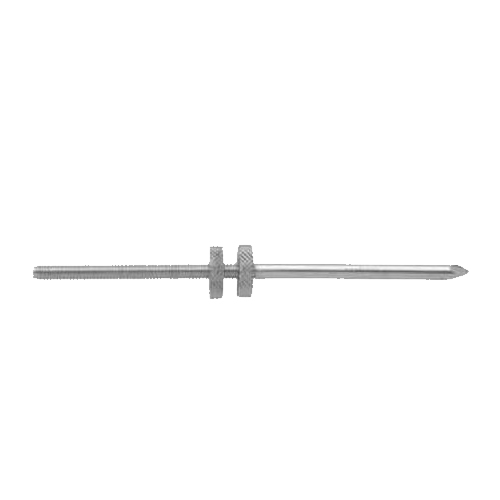

Austin Moore Pins, 3.0mm Dia with 2 Nuts
| Codes | Length (mm) |
| 05.19.SS01 | 50 |
| 05.19.SS02 | 55 |
| 05.19.SS03 | 60 |
| 05.19.SS04 | 65 |
| 05.19.SS05 | 70 |
| 05.19.SS06 | 75 |
| 05.19.SS07 | 80 |
| 05.19.SS08 | 85 |
| 05.19.SS09 | 90 |
| 05.19.SS10 | 95 |
| 05.19.SS11 | 100 |
| 05.19.SS12 | 105 |
| 05.19.SS13 | 110 |
| 05.19.SS14 | 115 |
| 05.19.SS15 | 120 |
| 05.19.SS16 | 125 |
| 05.19.SS17 | 130 |
| 05.19.SS18 | 135 |
| 05.19.SS19 | 140 |
| 05.19.SS20 | 145 |
| 05.19.SS21 | 150 |

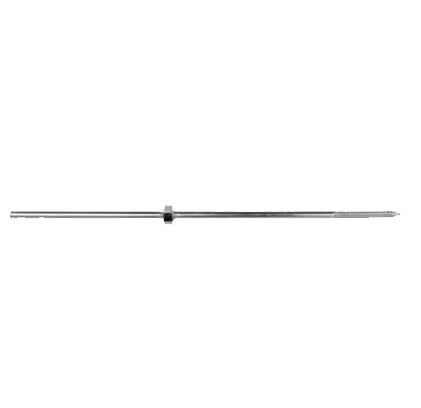

Knowles Pin
| Codes | Dia (mm) | Length (mm) |
| 05.20.SS01 | 3 | 65 |
| 05.20.SS02 | 3 | 70 |
| 05.20.SS03 | 3 | 75 |
| 05.20.SS04 | 3 | 80 |
| 05.20.SS05 | 3 | 85 |
| 05.20.SS06 | 3 | 90 |
| 05.20.SS07 | 3 | 95 |
| 05.20.SS08 | 3 | 100 |
| 05.20.SS09 | 4 | 65 |
| 05.20.SS10 | 4 | 70 |
| 05.20.SS11 | 4 | 75 |
| 05.20.SS12 | 4 | 80 |
| 05.20.SS13 | 4 | 85 |
| 05.20.SS14 | 4 | 90 |
| 05.20.SS15 | 4 | 95 |
| 05.20.SS16 | 4 | 100 |

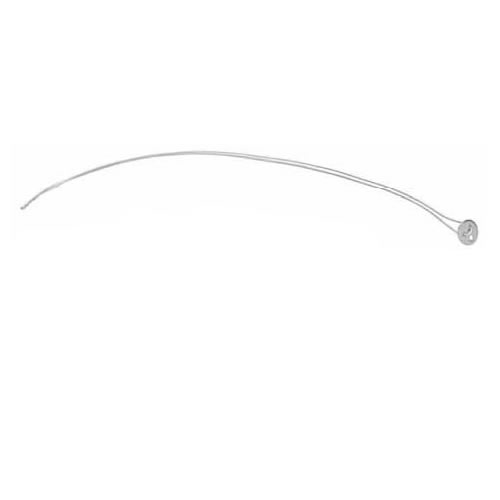

Drummer Wire
| 05.21.SS01 | 18 SWG (1.25mm) |
| 05.21.SS02 | 19 SWG (1.00mm) |
| 05.21.SS03 | 20 SWG (0.90mm) |

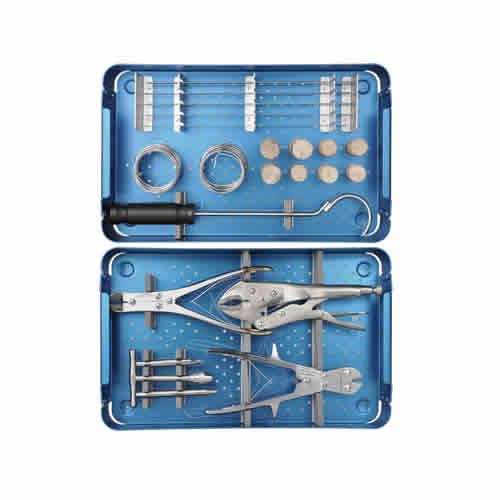

Wire Implant Set
| Code | Set Consisting of: | Units |
| 05.14.SS46 | K.Wire Dia 1.0mm, Length 225mm | 15 |
| 05.14.SS49 | K.Wire Dia 1.5mm, Length 225mm | 15 |
| 05.14.SS52 | K.Wire Dia 2.0mm, Length 225mm | 15 |
| 05.14.SS55 | K.Wire Dia 2.5mm, Length 225mm | 15 |
| 05.14.SS56 | K.Wire Dia 3.0mm, Length 225mm | 15 |
| 05.13.SS03 | S.S. Wire : 18 SWG ( 2 each ) | 2 |
| 05.13.SS05 | S.S. Wire : 20 SWG ( 2 each ) | 2 |
| 05.13.SS07 | S.S. Wire : 22 SWG ( 2 each ) | 2 |
| 05.16.SS08 | Steinmann Pin Dia 3.5, Length 225mm (5 each) | 5 |
| 05.16.SS12 | Steinmann Pin Dia 4.0, Length 225mm (5 each) | 5 |
| 05.16.SS16 | Steinmann Pin Dia 4.5, Length 225mm (5 each) | 5 |
| 05.22.01 | Aluminum Box for Wire Implant Set | 1 |
